[USB-503] USB to RS485 Converter Compact (MAX 250Kbps) HuMANDATA LTD.

[USB-503] USB to RS485 Converter Compact (MAX 250Kbps)

RoHS10 RS485 TB Isolated SurgeProtection.gif dmx512
NonChemi-Con Flame-retardant-ABS.gif

Compact isolated USB RS-485 Converter


Permalink of this page:

Overview

USB-503 is a USB to RS485 converter that can use RS-485 from USB interfaces. This is an insulation type that can be used safely even in the FA environment.

USB-503


Features

  • Supports RS485 (Half Duplex)
  • 2000VDC bus isolation
    USB side and RS-485 side are isolated
  • Baud rate up to 250Kbps
    High-speed type USB-010 (MAX 12Mbps) is also available
  • Supports custom baud rate
  • Auto transmit data control
    Built-in USB-serial chip has auto transmit controller and the driver is activated when it transmit the data
  • Built-in fail-safe bias resisters
  • Termination resistance setting switch
  • Pluggable the screw terminal
  • No external power supply is required
    USB-503 is powered through a USB port (Bus-powered)
  • Reliable industrial grade design
  • ESD and surge protection
    CE-certified USB-003 is also available
  • Housing material: Plastic
  • DIN rail, magnet, and screw mountable (Attachment is required)
  • Includes a USB cable (1.8m)
  • Free from the 10 RoHS-restricted substances.
  • MADE IN JAPAN

Specification

Item Description Remarks
Model USB-503
Input Power 5VDC
Supplied through a USB port (Bus-powered)		 No external power supply required
Current Consumption Less than 80 mA
I/O Interface RS485 ESD protection ESD_15kV
HOST Interface USB 2.0 compliant
Support Full Speed		 USB 1.1 compatible
ESD protection
Baud Rate 300 bps to 250 Kbps Support custom baud rate
Data Bits 7 or 8 bit
Stop Bits 1 or 2 bit
Parity Even, Odd, No-parity
FIFO RX Buffer Size 384 bytes
FIFO TX Buffer Size 128 bytes
Isolation Method Bus Isolation
Isolation Protection 2000VDC Designed value
Processor FT232BL FTDI
USB Driver Virtual COM port driver
Support OS Windows 10/8.1/8/7
LED PWR: USB bus power
RX: Receive data
TX: Transmit data
USB Connector Standard Type B Female
RS485 Connector Pluggable the screw terminal 3pin (PHOENIX CONTACT) 5mm pitch
Operating Ambient Temperature -10 to 60℃ (14 to 140 [°F]) No condensation permitted
Operating Ambient Humidity 10 to 85%RH No condensation permitted
Storage Ambient Temperature -20 to 55℃ (-4 to 131 [°F]) No condensation permitted
Storage Ambient Humidity 10 to 85%RH No condensation permitted
Weight Approx. 70 [g] Only main body
Dimensions 67 x 43.5 x 27 [mm]
(2.638" x 1.713" x 1.063")		 Without projections

* Power saving function (suspend, standby, sleep and others) is not supported

RS485 Connector pinouts

RS485C
Pin No Signal Signal and Polarity
1 A SD/RD +
2 B SD/RD -
3 GND Signal ground

Package Contents

  • USB-503
  • USB cable 1.8m
  • Driver & Application CD

Price and Optional Accessories

Description MODEL Image List Price (JPY) Stock Status
USB to RS485 Converter Compact
 USB-503 USB-503
Attachment with clamping screw
 PEN-003 PEN-003
Attachment for 35mm DIN rail
 PEN-003-DIN PEN-003-DIN
Attachment with neodymium magnet
 PEN-003-MG PEN-003-MG
Detachable 5P Terminal Connector
1757022 (Phoenix)
(Additional purchase) 		TB-USB-3 TB-USB-3
Page top
[ ]

[USB-304] 2 channel USB RS485/422 Converter (Independent Isolation) HuMANDATA LTD.

[USB-304] 2 channel USB RS485/422 Converter (Independent Isolation) MAX 12Mbps

RoHS10 8ch RS485 RS422 TB HI-SPEED Isolated SurgeProtection DMX512
NonChemi-Con Flame-retardant-ABS

2 channel USB RS485/422 Converter
Each 2 channels are independent isolation

Permalink of this page:

Overview

　USB-304 is a 2 channel USB to RS485/RS422 converter that isolated between each RS-485/422 serial port and a USB port. You can use 2 channels of RS-485/422 serial port from a USB port. Those 2 channels are isolated independently from USB side.
USB-304 has the dip switch to enable and disable the built-in 120 ohm terminal resistor. This is designed around the high performance industry proven FTDI chipset.

USB-304


Features

  • Supports RS-485/RS422
    2-wire or 4-wire of RS-485/RS422 selectable by the dip-switch
  • Each 2 channels are independent isolation
  • 2000VDC bus isolation
  • Baud rate up to 12Mbps (RS422)
    • The built-in isolator IC is available for up to 16Mbps
    • There is a baud rate that can not be set at more than 6Mbps.
    • RS-422 mode: up to 12Mbps, RS-485 mode: up to 6Mbps
  • Supports custom baud rate
    *When baud rates are more than 6Mbps, only 8 Mbps or 12 Mbps are supported. Please feel free to ask us about that by an inquiry form or e-mail.
  • USB 2.0 High Speed (480Mbps) and Full Speed (12Mbps) compliant
  • Auto transmit data control
    Built-in USB-serial chip has auto transmit controller and the driver is activated when it transmit the data
  • Built-in fail-safe bias resisters
  • Built-in 120 ohm terminal resistor selectable by the dip-switch
  • Pluggable the screw terminal
  • No external power supply is required
    USB-304 is powered through a USB port (Bus-powered)
  • Reliable industrial grade design
  • ESD and surge protection
  • Housing material: Plastic
  • DIN rail and screw mountable (Attachment is required)
  • Includes a USB cable (1.8m)
  • Includes an AC adapter
  • Free from the 10 RoHS-restricted substances.
  • MADE IN JAPAN

Specification

Item Description Remarks
Model USB-304
Input Power DC 5V / Less than 200mA
Supplied through a USB port
(Bus-powered)		 No external power supply required
Number of RS-485/422 Port 2
I/O Interface RS-485/422 (2-wire or 4-wire) ESD protection
HOST Interface USB 2.0 compliant (Support Hi Speed) USB 1.1 compatible ESD protection
USB Connector USB B type (Female)
Isolation Method Bus Isolation
Isolation Protection Over 2000VDC Designed value
Processor FT2232H FTDI
USB Driver Virtual COM port driver
Baud Rate 300bps to 6M/8M/12Mbps Support custom baud rate
Data Bits 7 or 8 bit
Stop Bits 1 or 2 bit
Parity Even, Odd or No-parity
FIFO RX Buffer Size 4096 Bytes / ch
FIFO TX Buffer Size 4096 Bytes / ch
LED POW　：Power LED
RX   　：Receive data LED x2
TX   　：Transmit data LED x2
RS485/RS422 Connector Detachable the screw terminal 5pin(PHOENIX CONTACT) 3.5mm pitch
Support OS Windows 10/8.1/8/7/Vista/XP
Operating Ambient Temperature -20 to 60℃ (-4 to 140 [°F]) No condensation permitted
Operating Ambient Humidity 30 to 85%RH No condensation permitted
Storage Ambient Temperature -20 to 60℃ (-4 to 140 [°F]) No condensation permitted
Storage Ambient Humidity 30 to 85%RH No condensation permitted
Weight Approx. 100 [g] Only main body
Dimensions 69 x 82.5 x 30 [mm]
(2.717" x 3.248" x 1.181")		 Without projections

* Power saving function (suspend, standby, sleep and others) is not supported


Interface Termianl (RS-485/RS422 PIN ASSIGNMENT)

RS485/RS422ピンアサイン
Pin No Signal Direction Notes
1

A (RD+)

 IN Receive data +
2

B (RD-)

 IN Receive data -
3 GND - Signal ground
4

Y (SD+)

 OUT Transmit data +
5

Z (SD-)

 OUT Transmit data -

Package Contents

  • USB-304
  • USB A-B cable 1.8m
  • Driver & Application CD

Price and Optional Accessories

Description MODEL Image List Price (JPY) Stock Status
2 channel USB RS485/422 Converter USB-304 USB-304
Attachment with clamping screw
 PEN-003 PEN-003
Attachment for 35mm DIN rail
 PEN-003-DIN PEN-003-DIN
Attachment with neodymium magnet
 PEN-003-MG PEN-003-MG
Detachable 5P Terminal Connector
1840395 (Phoenix)
(Additional purchase)
 TB35-USB-5 TB35-USB-5
Page top
[ ]

[USB-506A] USB 4-20mA Current Monitor (Compact) HuMANDATA LTD.

[USB-506A] USB 4-20mA Current Monitor (Compact)

RoHS10 4-20mA 0-25mA.gif TB Isolated Surge Protection cdc_uart
NonChemi-Con Flame-retardant-ABS

High-Accuracy 4-20 mA Measurement over USB
Built-in isolated power for 4-20 mA transmitters and sensors
Enables simpler wiring, easy installation, and compact design

Permalink of this page:

Overview

USB-506A is an isolated converter that connects to a PC or other device via USB and measures the 4-20 mA current. By isolating the USB side from the 4-20 mA side, stable measurement can be achieved through improved noise immunity and suppression of transient phenomena. In addition, the isolation provides robust protection for connected equipment.

USB-506A includes a built-in isolated power supply for powering 4-20 mA output devices and sensors, and either 24 VDC or 5 VDC can be used.
By using the dedicated application, USB-506 CV-Monitor, real-time display of measured data, scaling values, and graphs is available on a PC.
Dedicated control commands are also provided, enabling 4-20 mA measurement from user applications.

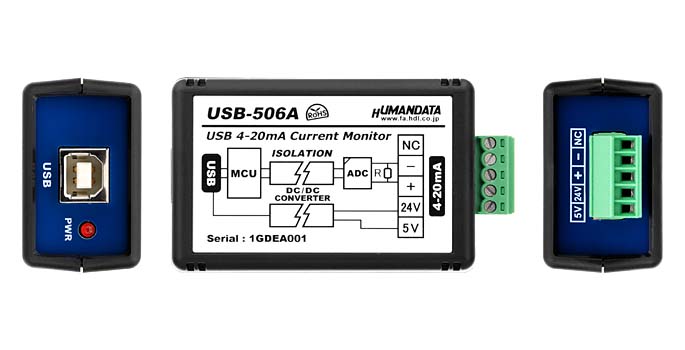

USB-506A

Features

  • 4-20 mA measurement data acquisition via USB
  • Measurement Range: 0-25 mA
  • Measurement Accuracy: ≤ ±0.25% FS
  • USB side and 4-20 mA side are electrically isolated
  • Easy control via virtual COM port with USB connection to a PC
  • Enables 4-20 mA current output, auto-step, and auto-sweep operation via the included application
  • Enables 4-20 mA output from user applications using dedicated control commands
  • Controllable from embedded Linux devices
    It operates as a device of the standard CDC-ACM class.
    For Linux distributions with embedded CDC-ACM device drivers, you can use them without installing the drivers.
    We do not support the use of Linux itself.
  • No external power supply is required
    USB-506A is powered through a USB port (Bus-powered)
  • ESD and surge protection
  • Pluggable the screw terminal
  • Housing material: Plastic
  • DIN rail, magnet, and screw mountable (Attachment is required)
  • Includes a USB cable (1.8 m)
  • Free from the 10 RoHS-restricted substances.
  • MADE IN JAPAN

Specification

Item Description Remarks
Model USB-506A
Input Power 5 VDC
Supplied via USB cable		 No external power supply required
Current Consumption 450 mA max.
(When the built-in power supply is not used: 200 mA max.)
HOST Interface USB 2.0 compliant (Full-Speed supported)
USB-B connector		 USB 1.1 compatible
ESD protection ESD11kV
USB connector Standard Type B Female
4-20 mA Connector 5-pin terminal block Phoenix Contact
Model: 1844249
Measuring Range 0 to 25 mA
Resolution 24-bit A/D Converter (ADC)
Measurement Accuracy ≤ ±0.25% FS
Sampling Period Minimum setting unit: 10 ms Selectable by command
Shunt Resistor 200 Ω ±0.01%
Built-in power supply 24 VDC (±5%) / 30 mA max. or
5 VDC (4.85 to 5.5 V) / 100 mA max.		 Isolated from the USB side. Simultaneous output is not supported.
Isolation Protection When the output power supply is not used: 2500 VDC
When using the 24 VDC output power supply: 1500 VDC
When using the 5 VDC output power supply: 2500 VDC		 Designed value
LSI General-purpose microcontroller
4-20 mA ADC
LED PWR: Power LED
Control Method Communication control via virtual COM port
Operating Ambient Temperature -20 to 60°C (-4 to 140°F) No condensation permitted
Operating Ambient Humidity 30 to 85% RH No condensation permitted
Storage Ambient Temperature -20 to 60°C (-4 to 140°F) No condensation permitted
Storage Ambient Humidity 30 to 85% RH No condensation permitted
Weight Approx. 70 g Only main body
Dimensions 67 x 43.5 x 27 mm
(2.638" x 1.713" x 1.063")		 Without projections

* There is a case to be changed to the parts of the compatibility.
* Power saving function (suspend, standby, sleep and others) is not supported

Application

This application runs on Windows and supports Windows 11 and Windows 10. By sending control commands to the device via USB, the application can output current from the device.
The application provides the following main functions:

  • Display of measured values (current or voltage) and scaled values
  • Real-time chart display
  • Measurement log display
  • Scaling configuration
    and more

USB-506 CV-Monitor download page.

Connector (PIN ASSIGNMENT)

Connector Pin Assignment Signal
NC NC
− Current Terminal (−)
＋ Current Terminal (＋)
24 V 24 VDC
5 V 5 VDC

Only one output power supply, either 24 VDC or 5 VDC, can be used at a time. Simultaneous use of both is not supported.

Package Contents

  • USB-506A
  • USB cable 1.8 m

Price and Optional Accessories

Description MODEL Image List Price (JPY) Stock Status
USB 4-20mA Current Monitor (Compact)
USB-506A USB-506A
Attachment with clamping screw
 PEN-003 PEN-003
Attachment for 35mm DIN rail
 PEN-003-DIN PEN-003-DIN
Attachment with neodymium magnet
 PEN-003-MG PEN-003-MG
Detachable 5P
Terminal Connector (3.5mm)
(Additional purchase) 		TB35-USB-5 TB-USB-5
Page top
[ ]

[USB-402] 8 channel USB RS485/422 Converter (Independent Isolation) HuMANDATA LTD.

[USB-402] 8 channel USB RS485/422 Converter (Independent Isolation)

RoHS10 8ch RS485 RS232 TB HI-SPEED Isolated SurgeProtection HUBx2
NonChemi-Con Flame-retardant-ABS.gif

8 channel USB RS485/422 Converter
Each 8 channels are independent isolation

Permalink of this page:

Overview

　USB-402 is an 8 channel USB to RS485/422 converter that isolated between each RS485/422 channel. Also, the 2 port USB connectors have a Hub function. USB Hub ports are not isolated.
USB-402 is that it has the dip switch to enable and disable the built-in 120 ohm terminal resistor. This is designed around the high performance industry proven FTDI chipset.

USB-402


Features

  • Supports RS485/RS422
    2-wire or 4-wire of RS485/RS422 selectable by the dip-switch
  • Each 8 channels are independent isolation
  • 2000VDC bus isolation
  • Baud rate up to 250 Kbps
  • Supports custom baud rate
  • Built-in fail-safe bias resisters
  • Auto transmit data control
    Built-in USB-serial chip has auto transmit controller and the driver is activated when it transmit the data
  • USB-402 is powered through a USB port (Bus-powered) or an AC adapter (Self-powered)
  • 2 USB Hub ports(non-isorated)
  • ESD and surge protection
  • Housing material: Plastic
  • DIN rail and screw mountable (Attachment is required)
  • Includes a USB cable (1.8m)
  • Includes an AC adapter
  • Free from the 10 RoHS-restricted substances.
  • MADE IN JAPAN

Specification

Item Description Remarks
Model USB-402
Input Power DC 5V / Less than 500mA
Supplied through a USB port
(Bus-powered) or AC adapter
(Self-powered)		 Recommend the use of an AC
adapter for stably supply.
Number of RS485/422 Port 8
I/O Interface RS485/RS422 (2-wire or 4-wire) ESD protection
HOST Interface USB 2.0 compliant (Support Hi Speed) USB 1.1 compatible ESD protection
HOST Connector USB B type (Female)
Isolation Method Bus Isolation
Isolation Protection Over 2000VDC Designed value
Processor FT4232H x 2 FTDI
USB Driver Virtual COM port driver
Baud Rate 300 bps to 250 Kbps Support custom baud rate
Data Bits 7 or 8 bit
Stop Bits 1 or 2 bit
Parity Even, Odd or No-parity
FIFO RX Buffer Size 2048 Bytes / ch
FIFO TX Buffer Size 2048 Bytes / ch
Number of USB Hub Port 2 non-isorated
USB Hub Port Connector USB A type (Female) x 2
Supplied Current to Target Less than 400mA / ch
LED POWER　：Power LED
RX   　：Receive data LED x8
TX   　：Transmit data LED x8
ST      ：USB Hub status LED x2
RS485/RS422 Connector Pluggable the screw terminal 5pin(PHOENIX CONTACT) 3.5mm pitch
Support OS Windows 10/8.1/8/7/Vista/XP
Operating Ambient Temperature -20 to 60℃ (-4 to 140 [°F]) No condensation permitted
Operating Ambient Humidity 30 to 85%RH No condensation permitted
Storage Ambient Temperature -20 to 60℃ (-4 to 140 [°F]) No condensation permitted
Storage Ambient Humidity 30 to 85%RH No condensation permitted
Weight Approx. 400 [g] Only main body
Dimensions 166 x 81.2 x 50 [mm] 　
(6.535" x 3.197" x 1.969")		 Without projections

* Power saving function (suspend, standby, sleep and others) is not supported


Interface Termianl (RS485/RS422 PIN ASSIGNMENT)

RS485/RS422ピンアサイン
Pin No Signal Direction Notes
1

A (RD+)

 IN Receive data +
2

B (RD-)

 IN Receive data -
3 GND - Signal ground
4

Y (SD+)

 OUT Transmit data +
5

Z (SD-)

 OUT Transmit data -

Package Contents

  • USB-402
  • USB mini-B cable 1.0 [m]
  • AC adapter(DC5V)
  • Driver & Application CD

Price and Optional Accessories

Description MODEL Image List Price (JPY) Stock Status
8 channel USB RS485/422 Converter USB-402 USB-402
Attachment for horizontal direction
 ACC-028 ACC-028
Attachment for DIN rail type B
 ACC-048 ACC-048
Neodymium magnet set
 ACC-036 ACC-036
Detachable 5P Terminal Connector
1840395 (Phoenix)
(Additional purchase)
 TB35-USB-5 TB35-USB-5
Page top
[ ]

[USB-045A] 2CH USB 4-20mA Current Monitor HuMANDATA LTD.

[USB-045A] 2 Channel USB 4-20mA Current Monitor

RoHS10 2ch 4-20mA 0-25mA.gif TB Isolated Surge Protection cdc_uart
NonChemi-Con Flame-retardant-ABS

Supports measurement of standard 4-20 mA
instrumentation signals via USB.
Each channel is independently isolated from the USB interface.

Permalink of this page:

Overview

USB-045A is a converter capable of measuring two channels 4-20 mA current. It connects to a computer via USB, allowing measurement results to be displayed and logged. The USB interface and each channel are independently isolated. In addition, an A/D converter is provided for every two channels, enabling simultaneous measurement of two channels. Dedicated control commands are also provided, enabling 4-20 mA measurement from user applications.

USB-405

* Second and subsequent images are CG models



Features

  • 2 channel 4-20 mA measurement data acquisition via USB
  • Measurement Range: 0-25 mA
  • Measurement Accuracy: ≤ ±0.25% FS
  • USB side and each channel are electrically isolated (2500 VDC)
  • Easy control via virtual COM port with USB connection to a PC
  • Enables 4-20 mA current output, auto-step, and auto-sweep operation via the included application
  • Enables 4-20 mA output from user applications using dedicated control commands
  • Controllable from embedded Linux devices
    It operates as a device of the standard CDC-ACM class.
    For Linux distributions with embedded CDC-ACM device drivers, you can use them without installing the drivers.
    We do not support the use of Linux itself.
  • No external power supply is required
    USB-045A is powered through a USB port (Bus-powered)
  • ESD and surge protection
  • Pluggable the screw terminal
  • Housing material: Plastic
  • DIN rail, magnet, and screw mountable (Attachment is required)
  • Includes a USB cable (1.8 m)
  • Free from the 10 RoHS-restricted substances.
  • MADE IN JAPAN

Specification

Item Description Remarks
Model USB-045A
Input Power 5 VDC / 350 mA max.
Supplied via USB cable		 No external power supply required
HOST Interface USB 2.0 compliant (Full-Speed supported)
USB-B connector		 USB 1.1 compatible
ESD protection ESD11kV
4-20 mA Connector 3-pin terminal block x 2 Phoenix Contact
Model: 1759020
Measuring Range 0 to 25 mA
Number of Channels 2
Resolution 24-bit A/D Converter (ADC)
Measurement Accuracy ≤ ±0.25% FS
Sampling Period Minimum setting unit: 10 ms Selectable by command
Shunt Resistor 200Ω ±0.01%
Isolation Method Independent bus isolation
Isolation Protection 2500 VDC Designed value
LSI General-purpose microcontroller
4-20 mA ADC
LED PWR: Power LED
Control Method Communication control via virtual COM port
Operating Ambient Temperature -20℃ to 60℃ (-4°F to 140°F) No condensation permitted
Operating Ambient Humidity 30% to 85% RH No condensation permitted
Storage Ambient Temperature -20℃ to 60℃ (-4°F to 140°F) No condensation permitted
Storage Ambient Humidity 30% to 85% RH No condensation permitted
Weight Approx. 90 ｇ Only main body
Dimensions 67 x 67 x 28 mm
(2.638" x 2.638" x 1.102")		 Without projections

* There is a case to be changed to the parts of the compatibility.
* Power saving function (suspend, standby, sleep and others) is not supported

Application

This application runs on Windows and supports Windows 11 and Windows 10. It allows real-time display and logging of measured values (current or voltage) acquired via USB. The application provides the following features:

  • Display of measured values (current or voltage) and scaled values
  • Real-time chart display
  • Measurement log display
  • Scaling configuration
  • Sampling and logging interval configuration
  • CSV file generation and export
    and more

USB-045 CV-Monitor download page.

Connector (PIN ASSIGNMENT)

Pin No Signal
1 NC
2 Current Terminal (−)
3 Current Terminal (＋)

Package Contents

  • USB-045A
  • USB cable 1.8 m

Price and Optional Accessories

Description MODEL Image List Price (JPY) Stock Status
2 Channel USB 4-20mA Current Monitor
 USB-045A USB-045A
Attachment with clamping screw
 PEN-003 PEN-003
Attachment for 35mm DIN rail
 PEN-003-DIN PEN-003-DIN
Attachment with neodymium magnet
 PEN-003-MG PEN-003-MG
Detachable 3P Terminal Connector
1757022 (Phoenix)
(Additional purchase) 		TB-USB-3 TB-USB-5
Page top
[ ]
  1. [USB-033] 4 Channel RS232C/USB Converter (Independent Isolation Type) HuMANDATA LTD.
  2. [USB-033SI] 4 Channel RS232C/USB Converter (Common Isolation Type) HuMANDATA LTD.
  3. [USB-401] 8 channel USB RS232 Converter HuMANDATA LTD.
  4. USB Converter (RS485, RS422, RS232)

Page 2 of 3

HDL00
© HuMANDATA LTD. - Altera & Xilinx FPGA Boards manufacturer in Japan - 2016
