[ACC-048] Attachment for DIN rail type B
Overview
The ACC-048 is an accessory for attaching the USB/LNX series of HuMANDATA to the DIN rail.

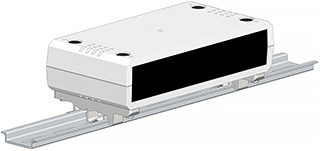

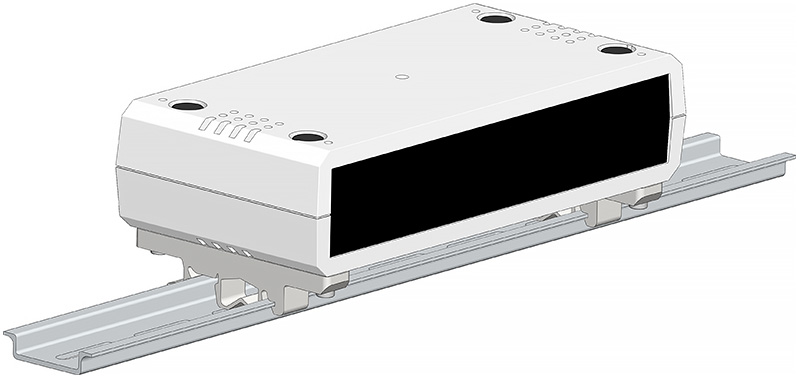

| DIN rail Mounting image |
 |
| Click to Zoom |
Package Contents
- DIN mounting foot (DRF80-1) × 2 pcs
- Tapping screw x 5 pcs (Spare 1 pcs)
Features
- Supports 35 mm wide DIN rails
- Material: Nylon 6 (*Nylon 6 will be yellow for a long period of time)
- Free from the 10 RoHS-restricted substances.

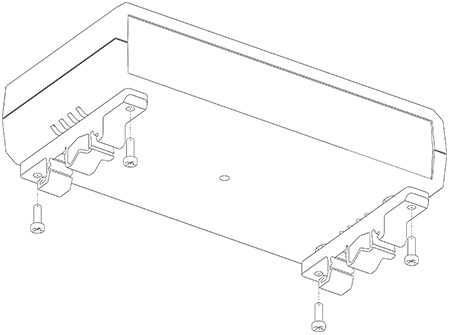

Attachment method
 |
| CAUTION: Do not use any screws other than the supplied screws. (Remove the rubber foot if necessary before attaching.) |
Documentation
 |
Outline Drawing, etc |
Price
| Description | MODEL | Image | List Price (JPY) |
Stock Status |
|---|---|---|---|---|
| Attachment for DIN rail type B |
ACC-048 |  |
Ordering
Compatible models
| No | Model | Image | Description |
|---|---|---|---|
| 1 | USB-033 |  |
4 Channel RS232C/USB Converter (Independent Isolation Type) |
| 2 | USB-033SI |  |
4 Channel RS232C/USB Converter (Common Isolation Type) |
| 3 | USB-039 |  |
4 Channel USB to RS485/422 Converter |
| 4 | USB-201 |  |
USB Multiplexer 8:1 - USB Switching Device |
| 5 | USB-202 |  |
4 Port USB Isolator (Independent Type) |
| 6 | USB-203 |  |
4 Port USB Isolator (Common Type) |
| 7 | USB-205 |  |
Support for USB 3.0 USB Multiplexer 4:1 - USB Switching Device |
| 8 | USB-206 |  |
USB 3.0 Host Multiplexer |
*Product can be used the ACC-048 with the same case other than the above.
[ ]
