[USB-029L2] USB2.0 Isolator Compact Rev2
[USB-029L2-5K] USB2.0 Isolator Compact (High voltage isolation)

RoHS10 HI-SPEED Isolated windows and mac
NonChemi-Con Flame-retardant-ABS

Improved reliability is protected from the noise
by an isolated USB connection. Compact Type

Permalink of this page:

Overview

USB-029L2 is a USB 2.0 High Speed (480Mbps), Full Speed (12Mbps) and Low Speed (1.5Mbps) compliant isolator which isolates between a USB host and a USB peripheral device with 3000VDC. With USB-029L2, it can be expected to eliminate ground loops that can cause measurement errors and equipment from surges, common-mode voltage, static discharge, magnetic fields, and radio frequency interference.There is no need to install any drivers. It works with every operating system such as Windows, Linux, Mac OS X.
The product is improved to Rev2 and its signal quality is more improved than previous versions.

USB-029L2-5K is a type of 5000V high voltage isolation.

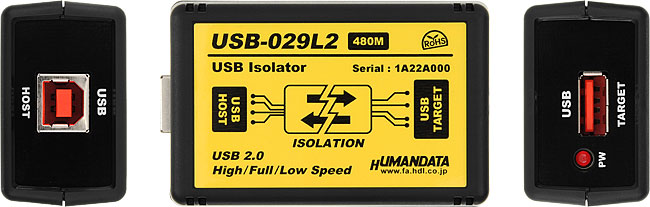

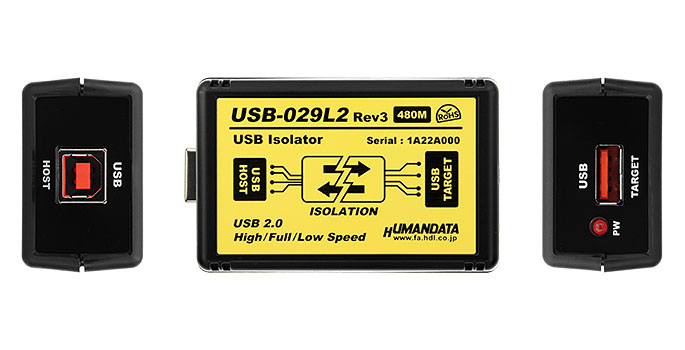

USB-029L2 * Second and subsequent images are CG models

Features

  • USB 2.0 High Speed (480Mbps), Full Speed (12Mbps) and Low Speed (1.5Mbps) compliant
  • USB host connector which is standard Type B female and have to be connected to a PC or other USB host device
  • USB target connector which is standard Type A female and have to be connected to a USB peripheral device
  • Uses standard high-retention USB Type A/B cable connection
  • OS-Independent (No drivers required)
  • USB-029L2 is powered through a USB port (Bus-powered)
  • Suppliable current of target side must be less than supply capability of host side.
    USB-029L2: Less than 400mA
    USB-029L2-5K: Less than 600mA
  • USB-029L2: 3000VDC bus isolation
    USB-029L2-5K: 5000VDC bus isolation
  • ESD and surge protection
  • Housing material: Plastic
  • DIN rail, magnet, and screw mountable(Attachment is required)
  • Includes a USB cable (1.8m)
  • Non-use of 10 Restricted substances of RoHS directive
  • MADE IN JAPAN

Specification

Item Description Remarks
Model USB-029L2 USB-029L2-5K
Isolation Protection DC 3000V DC 5000V Designed value
Suppliable current of target side Less than 400mA Less than 600mA Suppliable current of target side must be less than supply capability of host side.
Current Consumption Less than 100 mA + current of the target device Due to the efficiency of the internal DC/DC, more current flows to the host side than the target side.
Input Power 5VDC
Supplied through a USB port (Bus-powered)
No external power supply required
HOST Interface USB 2.0 Compliant
Supports High (480Mbps), Full (12Mbps) and Low (1.5Mbps) Speed
USB 1.1 compatible
ESD protection ESD11kV
Isolation Method Bus isolation
Support OS OS-Independent (No drivers required)
LED PW: Power LED
Operating Ambient Temperature -20 to 60℃ (-4 to 140 [°F]) No condensation permitted
Operating Ambient Humidity 20 to 90%RH
Storage Ambient Temperature -20 to 60℃ (-4 to 140 [°F])
Storage Ambient Humidity 20 to 90%RH
Noise Tolerance Not defined
Transmission and other Standard Not defined
Weight Approx. 75 [g] Only main body
Dimensions 43.5 x 67 x 27 [mm]
(1.713" x 2.638" x 1.063")
Without projections

Package Contents

  • USB-029L2 or USB-029L2-5K
  • USB A-B cable 1.8m

Price and Optional Accessories

Description MODEL Image List Price (JPY) Stock Status
USB2.0 Isolator Compact Rev2
USB-029L2 USB-029L2
USB2.0 Isolator Compact
(High voltage isolation)
USB-029L2-5K USB-029L2-5K
Attachment with clamping screw PEN-003 PEN-003
Attachment for 35mm DIN rail
PEN-003-DIN PEN-003-DIN
Attachment with neodymium magnet
PEN-003-MG PEN-003-MG
