[USB-029H2-RP] High Speed (480Mbps) USB2.0 Isolator with Repeater IC

RoHS HI-SPEED Isolated Repeater FGswitch windows and mac
NonChemi-Con Flame-retardant-ABS

Improved reliability is protected from the noise
by an isolated USB connection. High Speed (480Mbps) compliant

Permalink of this page:

Overview

USB-029H2-RP is a USB 2.0 High Speed (480Mbps), Full Speed (12Mbps) and Low Speed (1.5Mbps) compliant isolator which isolates between a USB host and a USB peripheral device with 3000VDC. With USB-029H2-RP, it can be expected to eliminate ground loops that can cause measurement errors and equipment from surges, common-mode voltage, static discharge, magnetic fields, and radio frequency interference.There is no need to install any drivers. It works with every operating system such as Windows, Linux, Mac OS X. USB-029H2-RP uses the repeater ICs each USB host and USB target to exhibit the best output jitter performance USB 2.0 data lines. Also there is FG separation function by the dip-switch between USB host and USB target.

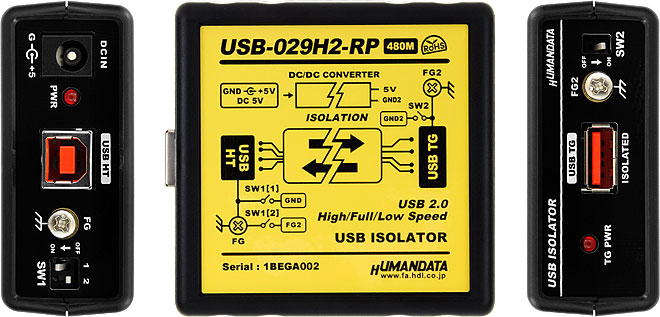

USB-029H2-RP

* Second and subsequent images are CG models

Features

  • USB 2.0 High Speed (480Mbps), Full Speed (12Mbps) and Low Speed (1.5Mbps) compliant
  • USB host connector which is standard Type B female and have to be connected to a PC or other USB host device
  • USB target connector which is standard Type A female and have to be connected to a USB peripheral device
  • Uses standard high-retention USB Type A/B cable connection
  • Built-in FG terminal and SG/FG separation function by the dip-switch each USB host and USB target
  • FG separation function by the dip-switch between USB host and USB target
  • OS-Independent (No drivers required)
  • Built-in repeater IC to exhibit the best output jitter performance USB 2.0 data lines with each USB host and USB target
  • USB-029H2-RP is powered through a USB port (Bus-powered) or an AC adapter (Self-powered)
    DC-DC converter supply isolated voltage to a USB peripheral device from a USB host if no external power supply is present
  • 3000VDC bus isolation
  • ESD and surge protection
  • Housing material: Plastic
  • DIN rail, magnet, and screw mountable(Attachment is required)
  • Includes a USB cable (1.8m)
  • Includes an AC adapter
  • RoHS compliant

Specification

Item Description Remarks
Model USB-029H2-RP
Input Power 5VDC
Supplied through a USB port(Bus-powered) or AC adapter(Self-powered)
Recommend the use of an AC adapter for stably supply
An AC adapter supply to the host side.
Supplied Current to Target Less than 100 mA(Bus-powered)
Less than 400 mA(AC adapter)

HOST Interface USB 2.0 Compliant
Supports High (480Mbps), Full (12Mbps) and Low (1.5Mbps) Speed
USB 1.1 compatible
ESD protection ESD11kV
Isolation Method Bus isolation
Isolation Protection 3000VDC Designed value
Support OS OS-Independent (No drivers required)
LED PWR: Power LED
TG-PWR: Target power LED

Operating Ambient Temperature -10 to 60℃ No condensation permitted
Operating Ambient Humidity 30 to 85%RH No condensation permitted
Storage Ambient Temperature -20 to 60℃ No condensation permitted
Storage Ambient Humidity 30 to 85%RH No condensation permitted
Noise Tolerance Not defined
Transmission and other Standard Not defined
Weight Approx. 90 [g] Only main body
Dimensions 67 x 67 x 28 [mm]
(2.638" x 2.638" x 1.102")
Without projections

Package Contents

  • USB-029H2-RP
  • USB A-B cable 1.8m
  • AC adapter

Price and Optional Accessories

Description MODEL Image List Price (JPY) Stock Status
USB2.0 Isolator with Repeater IC USB-029H2-RP USB-029H2-RP
USB series Attachment
with clamping screw
PEN-003 PEN-003
USB series Attachment
for 35mm DIN rail
PEN-003-DIN PEN-003-DIN
USB series Attachment
with neodymium magnet
PEN-003-MG PEN-003-MG
