[LNX-003] RS-485/422 LAN Converter (PoE/Non-PoE) Rev2

RoHS10CELANPoEmicroSDRS485RS422TBDouble-isolatedSurgeProtection
NonChemi-ConFlame-retardant-ABS

Possible to control RS-485/422 devices via Ethernet
Easy configuration by microSD

Upcoming Product                        Permalink of this page:

LNX-003 is a LAN converter which makes it possible to use RS-485/422 devices via Ethernet local area network.  LNX-003e is an economy model of LNX-003 which only PoE function is removed.
LNX-003 has obtained the CE marking.(except for PoE function)CE
LNX-003

Overview

LNX-003 is a LAN converter which makes it possible to use RS-485/422 devices via Ethernet local area network.  RS-485/422 side is isolated and the LAN interface is also isolated, so LNX-003 consists of double isolation.Tunneling mode is available by connecting with LNX-001 (USB to LAN converter) or LNX-003. In that case, connecting with devices in other RS-485/422 network is possible.  And by using TCP/UDP or Telnet, direct control from PC is also available.
LNX-003 supports PoE function as a standard model, making it possible to be powered via LAN cable (PoE compatible HUB or other is required).  It can also be operated from AC adapter. LNX-003e is an economy model of LNX-003 from which only PoE function is removed. It requires AC adapter for power supply.
Network setting can be set by a microSD card. Restoring the setting information from a microSD card is very convenient when replacing LNX-003.

LNX-003LNX-003
*Attachment A for panel mount is separately sold part.

■Tonneling mode example
NET485X2
By using TCP/IP or Telnet, direct control from PC is also available.

Features

  • Possible to control RS-485/422 devices via Ethernet local area network
  • Tunneling mode is available by connecting with two LNX-003
  • Half-duplex / Full-duplex (auto detected)
  • Easy configuration by microSD
    • It is easily restored at the time of the exchange by microSD.
    • It can send configuration data by e-mail attachments.
    • It is setable in PC out of the network segment.
    • Backup of the configuration data is easy.
  • Configuration is possible via LAN by LNX SETTING TOOL
  • Possible power supply from the LAN cable by PoE function
  • Supports Virtual COM port
  • Reliable industrial grade design
  • ESD and surge protection
  • Housing material: Plastic
  • DIN rail, magnet, and screw mountable(Attachment is required)
  • Includes a microSD card(with USB adapter)
  • Includes an AC adapter
  • RoHS and CE compliant CE(except for PoE function)

Connection example

[Tunneling mode between two LNX-003]

RS485-422LNX-003LANLNX-003RS485-422機器
Direct communication between two LNX-003 without PCs offers you to connect separated a RS-485/422 networks. By using cross cable, one to one connection is also available.

[Tunneling mode between LNX-001 and LNX-003]

WIN PCLNX-003LANLNX-003RS485-422機器
LNX-001 offers you to control as USB interface via the LAN. By connecting this with LNX-003 in tunneling mode, virtual COM port and D2XX-API by FTDI is available.
Technical knowledge about the network is not needed.

[LNX-003 single operation]

WIN PCLANLNX-003RS485-422機器
Communication with RS-485/422 devices via Ethernet local area network is available.

Specification

Item Description Remarks
Model LNX-003/LNX-003e
Power 5VDC
Supplied by AC adapter or by LAN connector (PoE function)
(LNX-003e is not supported the PoE function)
PoE
PoE function supports both mode A and B
Current Consumption Less than 350 mA
Network Interface IEEE802.3(10Base-T)
IEEE802.3u(100Base-TX)
half-duplex / full-duplex (auto detected)

LAN Connector RJ45 ESD protection
ESD11kV
Isolation over 1500VDC
Protocol TCP/UDP/Telnet
Interface RS-485 / RS-422
(2 wire or 4 wire)
isolated from inner circuit (DC3000V)
ESD protection
ESD15kV
Double-isolated
Connector 5 position Terminal Block
(PHOENIX CONTACT)
5.08mm pitch
Memory Card microSD card For configuration
Baud Rate 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 bps
Data Bits 7 or 8 bits
Stop Bits 1 or 2 bits
Parity Even, Odd, No parity
LED POW: Power LED
RX: Reception LED
TX: Transmission LED
SYS: System Status LED
LINK (RJ45 Connector): LINK Status
ACT (RJ45 Connector): ACT Status

Operating Ambient Temperature -10 to +55 °C No condensation permitted
Operating Ambient Humidity 30 to 85 % RH No condensation permitted
Storage Ambient Temperature -20 to +60 °C No condensation permitted
Storage Ambient Humidity 30 to 85 % RH No condensation permitted
CE Compliant EMS:EN61000-6-2
- IEC61000-4-2 Electrostatic discharge requirements
- IEC61000-4-3 Radiated electromagnetic field requirements
- IEC61000-4-4 Electrical fast transient burst requirements
- IEC61000-4-5 Surge immunity test requirements
- IEC61000-4-6 Conducted radio frequency requirements
EMI:EN61000-6-4
- EN61000-6-4(2007)+A1(2011) Radiated Emissions
- EN61000-6-4(2007)+A1(2011) Conducted Emissions
CE
This product has applied the common standard for industrial environment EN61000-6-2 and EN61000-6-4
(except for PoE function)
Weight Approx. 120 [g] Only main body
Dimensions 69 x 82.5 x 30 [mm]
(2.638" x 3.248" x 1.181")
Without projections

Interface Termianl (RS485/RS422 PIN ASSIGNMENT)

RS485/RS422ピンアサイン
Pin No Signal Direction Notes
1

A (RD+)

IN Receive data +
2

B (RD-)

IN Receive data -
3 GND - Signal ground
4 Y (SD+) OUT Transmit data +
5 Z (SD-) OUT Transmit data -

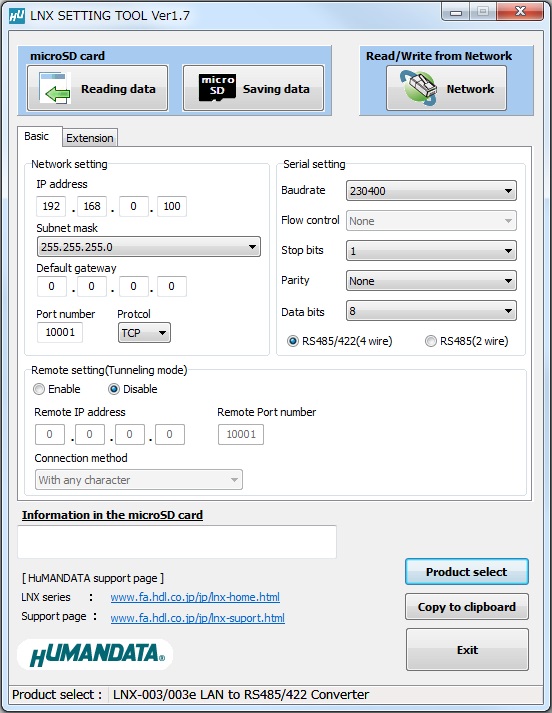

LNX SETTING TOOL

This application makes configured data of the LNX series.

After saving the configuration data to the microSD, and insert the product it.
It will be automatically set by turning on the power of LNX-003.
Then backup file is made to microSD card automatically.

Package Contents

  • LNX-003 or LNX-003e
  • microSD card(with USB adapter)
  • AC adapter
  • Driver & Application CD

Price and Optional Accessories

Description MODEL Image List Price (JPY) Stock Status
RS-485/422 LAN Converter
Rev2
LNX-003 LNX-003
PoE
RS-485/422 LAN Converter
economy type Rev2
LNX-003e LNX-003e
Not supported
PoE function
USB series Attachment
with clamping screw
PEN-003 PEN-003
USB series Attachment
for 35mm DIN rail
PEN-003-DIN PEN-003-DIN
USB series Attachment
with neodymium magnet
PEN-003-MG PEN-003-MG
5P Terminal to RJ45
Convert Adapter
ACC-005 ACC-005
Detachable 5P Terminal Connector
1757048 (Phoenix)
(Additional purchase)
TB-USB-5 TB-USB-5
