公開APIのヘッダ（関数定義）
/******************************************************************************
* HDL9BITDLL.h
*
* API for interfacing to USB-306
*
******************************************************************************/
#pragma once
#ifndef _HDL9BIT_H
#define _HDL9BIT_H
#include <Windows.h>
#ifndef uint32l_t
typedef unsigned long uint32l_t;
#endif
#ifndef uint16_t
typedef unsigned short uint16_t;
#endif
#ifndef uint8_t
typedef unsigned char uint8_t;
#endif
#ifndef boolean_t
typedef BOOL boolean_t;
#endif
#ifndef H9bHandle_t
typedef void* H9bHandle_t;
#endif
/******************************************************************************
* API Functions
******************************************************************************/
//#define DECLSPECH
#ifdef DECLSPEC_EXPORThdl
#define DECLSPECH __declspec(dllexport)
#else
#define DECLSPECH __declspec(dllimport)
#endif
#ifdef __cplusplus
extern "C" {
#endif
/*
* Returns the current USB Serial Number String.
* デバイス固有番号取得
*/
DECLSPECH int WINAPI HDL9BIT_GetOtpSerialNumberString(
__in H9bHandle_t uartDeviceObject,
__out uint8_t* stringLength,
__out char* serialString
);
/*
* Returns the number of attached devices with matching IDs.
* デバイス総数を取得
*/
DECLSPECH int WINAPI HDL9BIT_GetNumUartsA(
__in_opt uint16_t productIDFilter,
__in_opt uint8_t interfaceIDFilter,
__out uint32l_t* numUarts
);
/*
* Returns the currently configures data rate and character format
* 通信条件の読み込み
* for a UART channel.
*/
DECLSPECH int WINAPI HDL9BIT_GetLineCodingA(
__in H9bHandle_t uartDeviceObject,
__out uint32l_t* dataRate,
__out uint8_t* charFormat,
__out uint8_t* parityType,
__out uint8_t* dataBits,
__out uint8_t* flowControl,
__out uint8_t* gpioMode0
);
/*
* Configures the data rate and character format of a UART channel.
* 通信条件設定
*/
DECLSPECH int WINAPI HDL9BIT_SetLineCodingA(
__in H9bHandle_t uartDeviceObject,
__in uint32l_t dataRate,
__in uint8_t charFormat,
__in uint8_t parityType,
__in uint8_t dataBits,
__in uint8_t flowControl,
__in uint8_t gpioMode0
// addressモード時 flowControl = 0x03
// それ以外は flowControl = 0x01
// gpioMode0は0x39固定
);
/*
* Returns the current timeout settings.
* 送受信タイムアウト時間読み出し
*/
DECLSPECH int WINAPI HDL9BIT_GetTimeouts(
__in H9bHandle_t uartDeviceObject,
__out uint32l_t* writeTimeout,
__out uint32l_t* readTimeout
);
/*
* Sets maximum allowable time for read and write operations.
* 送受信タイムアウト時間設定
*/
DECLSPECH int WINAPI HDL9BIT_SetTimeouts(
__in H9bHandle_t uartDeviceObject,
__in uint32l_t writeTimeout,
__in uint32l_t readTimeout
);
/*
* Returns the current setting for the number of bytes in the Rx FIFO
* before flow control is asserted to the remote UART.
* 受信FIFO動作しきい値読み込み
*/
DECLSPECH int WINAPI HDL9BIT_GetUartRxFifoThreshold(
__in H9bHandle_t uartDeviceObject,
__out uint16_t* rxFifoThreshold
);
/*
* Sets how many bytes will be stored in the local UART's Rx FIFO
* before flow control is asserted to the remote UART.
* 受信FIFO動作しきい値設定
*/
DECLSPECH int WINAPI HDL9BIT_SetUartRxFifoThreshold(
__in H9bHandle_t uartDeviceObject,
__in uint16_t rxFifoThreshold
);
/*
* Opens the device specified by the index into the array of available
* devices and returns a handle to it.
* UARTオープン
*/
DECLSPECH int WINAPI HDL9BIT_OpenUartA(
__in uint32l_t memberIndex,
__in_opt uint16_t productIDFilter,
__in_opt uint8_t interfaceIDFilter,
__out H9bHandle_t* uartDeviceObject
);
/*
* Close a device handle
* UARTクローズ
*/
DECLSPECH int WINAPI HDL9BIT_CloseUart(
__in H9bHandle_t uartDeviceObject
);
/*
* Returns the currently configured addresses used by the UART when
* Address Match Mode is enabled.
* AddressModeで使用する設定アドレス取得
*/
DECLSPECH int WINAPI HDL9BIT_GetUartAddress(
__in H9bHandle_t uartDeviceObject,
__out uint8_t* unicastAddress,
__out uint8_t* multicastAddress
);
/*
* Sets the addresses the UART will respond to when Address Match Mode
* is enabled.
* AddressModeで使用する設定アドレス設定
*/
DECLSPECH int WINAPI HDL9BIT_SetUartAddress(
__in H9bHandle_t uartDeviceObject,
__in uint8_t unicastAddress,
__in uint8_t multicastAddress
);
/*
* Reads data from a UART handle (USB IN transfers).
* 受信データ読み込み
*/
DECLSPECH int WINAPI HDL9BIT_ReadUart(
__in H9bHandle_t uartDeviceObject,
__in uint32l_t numberOfBytesToRead,
__out uint8_t* byteBuffer,
__out uint32l_t* numberOfBytesRead
);
/*
* Writes data to a UART handle (USB OUT transfers).
* 送信データ書き込み(送信)
*/
DECLSPECH int WINAPI HDL9BIT_WriteUart(
__in H9bHandle_t uartDeviceObject,
__in uint32l_t numberOfBytesToWrite,
__in uint8_t* byteBuffer,
__out uint32l_t* numberOfBytesWritten
);
/*
* Indicates whether a UART channel is currently enabled for transmit and receive
* 送受信有効・無効設定確認
*/
DECLSPECH int WINAPI HDL9BIT_IsEnabled(
__in H9bHandle_t uartDeviceObject,
__out boolean_t* enabled
);
/*
* Enables a UART channel for transmit and receive
* 送受信有効・無効設定
*/
DECLSPECH int WINAPI HDL9BIT_EnableUart(
__in H9bHandle_t uartDeviceObject,
__in boolean_t enable
);
/*
* Flushes buffers and FIFOs in transmit, receive, or both directions.
* 送受信バッファを空にする
*/
DECLSPECH int WINAPI HDL9BIT_FlushBuffers(
__in H9bHandle_t uartDeviceObject,
__in boolean_t flushTransmit,
__in boolean_t flushReceive
);
/*
* Requests a UART to transmit a break signal.
* ブレーク信号送信
*/
DECLSPECH int WINAPI HDL9BIT_SendBreak(
__in H9bHandle_t uartDeviceObject,
__in uint8_t breakDuration
);
/*
* Requests a UART to stop transmitting break.
* ブレーク信号停止
*/
DECLSPECH int WINAPI HDL9BIT_CancelBreak(
__in H9bHandle_t uartDeviceObject
);
/*
* Returns the current USB Manufacturer String.
* 製造メーカ名取得
*/
DECLSPECH int WINAPI HDL9BIT_GetOtpManufacturerString(
__in H9bHandle_t uartDeviceObject,
__out uint8_t* strlen,
__out char* manufacturingString
);
/*
* Returns the current USB Product String.
* 製品名称取得
*/
DECLSPECH int WINAPI HDL9BIT_GetOtpProductString(
__in H9bHandle_t uartDeviceObject,
__out uint8_t* stringLength,
__out char* productString
);
/*
* Returns the release version of this API.
* ファームウエアバージョン取得
*/
DECLSPECH int WINAPI HDL9BIT_GetSoftwareAPIAttributes(
__out uint8_t* majorVersion,
__out uint8_t* minorVersion,
__out boolean_t* isReleaseVersion
);
/*
* Indicates whether a device handle is still open
* オープン状況問い合わせ
*/
DECLSPECH int WINAPI HDL9BIT_IsOpen(
__in H9bHandle_t uartDeviceObject,
__out boolean_t* opened
);
/*
* Causes a UART channel to be re-enumerated on the USB bus.
* USBの再エニュメレート
*/
DECLSPECH int WINAPI HDL9BIT_ReEnumerate(
__in H9bHandle_t uartDeviceObject
);
#ifdef __cplusplus
}
#endif /* __cplusplus */

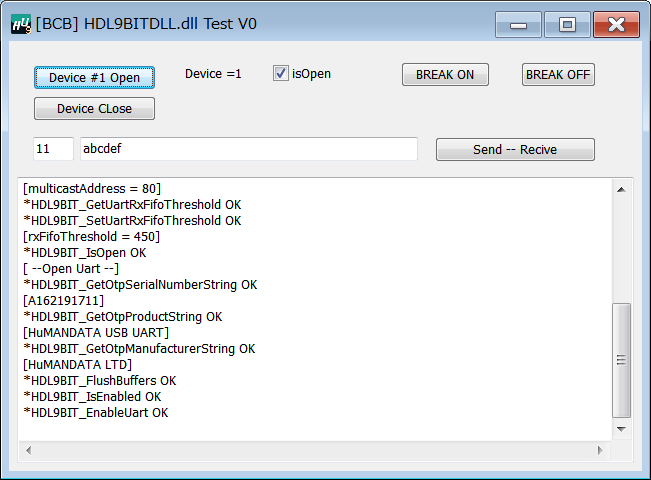

公開APIのヘッダ（定数定義）
/****************************************************************************** * String Type ******************************************************************************/ #define HDL9BIT_MAX_STRING_LENGTH 260 #define HDL9BIT_MANUFACTURING_STRING_LENGTH 256 #define HDL9BIT_PRODUCT_STRING_LENGTH 256 #define HDL9BIT_SERIAL_STRING_LENGTH 256 typedef char HDL9BIT_DEVICE_STRING[HDL9BIT_MAX_STRING_LENGTH]; typedef char HDL9BIT_MANUFACTURING_STRING[HDL9BIT_MANUFACTURING_STRING_LENGTH]; typedef char HDL9BIT_PRODUCT_STRING[HDL9BIT_PRODUCT_STRING_LENGTH]; typedef char HDL9BIT_SERIAL_STRING[HDL9BIT_SERIAL_STRING_LENGTH]; /****************************************************************************** * API Return Codes ******************************************************************************/ #define HDL9BIT_SUCCESS 0x00 #define HDL9BIT_ERR_DEVICE_NOT_FOUND 0x01 #define HDL9BIT_ERR_INVALID_HANDLE 0x02 #define HDL9BIT_ERR_HANDLE_IS_NOT_A_UART 0x03 #define HDL9BIT_ERR_INVALID_PARAMETER 0x04 #define HDL9BIT_ERR_INVALID_REQUEST_LENGTH 0x05 #define HDL9BIT_ERR_UART_READ_FAIL 0x10 #define HDL9BIT_ERR_UART_WRITE_FAIL 0x11 #define HDL9BIT_ERR_UART_READ_FAIL_TIME_OUT 0x12 #define HDL9BIT_ERR_UART_WRITE_FAIL_TIME_OUT 0x13 #define HDL9BIT_ERR_USB_CTRL_PIPE_FAIL 0x14 #define HDL9BIT_ERR_USB_COMMUNICATION_ERROR 0x15 #define HDL9BIT_ERR_USB_DEVICE_NOT_SUPPORTED 0x16 #define HDL9BIT_ERR_GENERIC_FAIL 0xFF /****************************************************************************** * API Parameter Encodings ******************************************************************************/ /* * stringType definitions for HDL9BIT_GetStringByIndex() * and HDL9BIT_GetStringByHandle() */ #define HDL9BIT_STRING_TYPE_VID 0x01 #define HDL9BIT_STRING_TYPE_PID 0x02 #define HDL9BIT_STRING_TYPE_PATH 0x03 #define HDL9BIT_STRING_TYPE_SERIAL 0x04 #define HDL9BIT_STRING_TYPE_MANUFACTURER 0x05 #define HDL9BIT_STRING_TYPE_PRODUCT 0x06 /* * Error Flags returned by HDL9BIT_GetUartAttributes() */ #define HDL9BIT_ERROR_FLAG_PARITY 0x01 #define HDL9BIT_ERROR_FLAG_OVERFLOW 0x02 /* * Number of data bits. Input to HDL9BIT_SetLineCoding() and * output of HDL9BIT_GetLineCoding() */ #define HDL9BIT_DATA_BITS_FIVE 0x00 #define HDL9BIT_DATA_BITS_SIX 0x01 #define HDL9BIT_DATA_BITS_SEVEN 0x02 #define HDL9BIT_DATA_BITS_EIGHT 0x03 #define HDL9BIT_DATA_BITS_NINE 0x04 /* * Parity types. Input to HDL9BIT_SetLineCoding() and * output of HDL9BIT_GetLineCoding() */ #define HDL9BIT_PARITY_NONE 0x00 #define HDL9BIT_PARITY_ODD 0x01 #define HDL9BIT_PARITY_EVEN 0x02 #define HDL9BIT_PARITY_MARK 0x03 #define HDL9BIT_PARITY_SPACE 0x04 /* * Character formats. Input to HDL9BIT_SetLineCoding() and * output of HDL9BIT_GetLineCoding() */ #define HDL9BIT_CHAR_FORMAT_STOP_SHORT 0x00 #define HDL9BIT_CHAR_FORMAT_STOP_LONG 0x01 /* * Flow control types. Input to HDL9BIT_SetLineCodingA() and * output of HDL9BIT_GetLineCodingA() */ #define HDL9BIT_FLOW_CONTROL_NONE 0x00 #define HDL9BIT_FLOW_CONTROL_HW_RTS_CTS 0x01 #define HDL9BIT_FLOW_CONTROL_ADDRESS_MODE 0x03 #endif /* _HDL9BIT_H */
使用例
・全ソース公開されている全てのAPIを使っているサンプルソースです。
// ---------------------------------------------------------------------------
#include <vcl.h>
#pragma hdrstop
#include "Unit2.h"
#include "HDL9BIT\HDL9BITDLL.h"
// ---------------------------------------------------------------------------
#pragma package(smart_init)
#pragma resource "*.dfm"
TForm2 *Form2;
boolean_t isOpenUart;
H9bHandle_t HDL9BIT_han;
// ---------------------------------------------------------------------------
__fastcall TForm2::TForm2(TComponent* Owner) : TForm(Owner) {
}
__fastcall TForm2::memo_ret(String msg, int ret) // HDL9BITDLLの戻り値表示
{
String msg1;
if (ret == HDL9BIT_SUCCESS) {
msg1 = "*" + msg + " OK";
Memo_monit->Lines->Add(msg1);
}
else {
msg1 = "*" + msg + " ---- Error!";
Memo_monit->Lines->Add(msg1);
}
Memo_monit->Perform(EM_SCROLLCARET, 0, 0);
}
__fastcall TForm2::memo(String msg) // memo 表示
{
Memo_monit->Lines->Add("[" + msg + "]");
Memo_monit->Perform(EM_SCROLLCARET, 0, 0); //キャレット位置までスクロール
}
// ---------------------------------------------------------------------------
void __fastcall TForm2::Button_openClick(TObject *Sender) {
int ret;
uint8_t strlen8b;
uint8_t serialString[512];
uint8_t productString[512];
uint8_t manufacturingString[512];
uint8_t minorVersion;
uint8_t majorVersion;
boolean_t isReleaseVersion;
AnsiString ss1;
isOpenUart = false;
minorVersion = 0;
majorVersion = 0;
isReleaseVersion = false;
while (true) {
// -------------------------------------------------------------------
// Returns the release version of this API.
// ファームウエアバージョン取得
ret = HDL9BIT_GetSoftwareAPIAttributes(
&majorVersion, // __out uint8_t* majorVersion,
&minorVersion, // __out uint8_t* minorVersion,
&isReleaseVersion // __out boolean_t* isReleaseVersion
);
memo_ret("HDL9BIT_GetSoftwareAPIAttributes", ret);
ss1.printf("majorVersion= %d", majorVersion);
memo( ss1 );
ss1.printf("minorVersion= %d", minorVersion);
memo( ss1 );
// Returns the number of attached devices with matching IDs.
// デバイス数取得
uint16_t productIDFilter;
uint32l_t numUarts;
productIDFilter = 0x4001;
ret = HDL9BIT_GetNumUartsA(
productIDFilter, // __in_opt uint16_t productIDFilter,
(uint8_t)0, // __in_opt uint8_t interfaceIDFilter,
&numUarts // __out uint32l_t* numUarts
);
memo_ret("HDL9BIT_GetNumUartsA", ret);
// -------------------------------------------------------------------
// Opens the device specified by the index into the array of available
// devices And returns a handle to it.
// UARTオープン
ss1.printf("%d", numUarts);
label_devn->Caption = "Device =" + ss1;
ret = HDL9BIT_OpenUartA(
0, // __in uint32l_t memberIndex,
productIDFilter, // __in_opt uint16_t productIDFilter,
(uint8_t)0, // __in_opt uint8_t interfaceIDFilter,
&HDL9BIT_han // __out H9bHandle_t* uartDeviceObject
);
memo_ret("HDL9BIT_OpenUart", ret);
if (ret != HDL9BIT_SUCCESS) {
break;
}
// -------------------------------------------------------------------
// Returns the currently configures data rate and character format
// 通信条件の読み込み
uint32l_t dataRate; // __out uint32l_t* dataRate,
uint8_t charFormat; // __out uint8_t* charFormat,
uint8_t parityType; // __out uint8_t* parityType,
uint8_t dataBits; // __out uint8_t* dataBits,
uint8_t flowControl; // __out uint8_t* flowControl,
uint8_t gpioMode0;
ret = HDL9BIT_GetLineCodingA(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
&dataRate, // __out uint32l_t* dataRate,
&charFormat, // __out uint8_t* charFormat,
&parityType, // __out uint8_t* parityType,
&dataBits, // __out uint8_t* dataBits,
&flowControl, // __out uint8_t* flowControl,
&gpioMode0 // __out uint8_t* gpioMode0
);
memo_ret("HDL9BIT_GetLineCodingA", ret);
// -------------------------------------------------------------------
// Configures the data rate and character format of a UART channel.
// 通信条件設定
dataBits = HDL9BIT_DATA_BITS_NINE; // '9bitモード指定
parityType = HDL9BIT_PARITY_NONE;
dataRate = 1200000;
flowControl = HDL9BIT_FLOW_CONTROL_ADDRESS_MODE;
gpioMode0 = 0x39;
ret = HDL9BIT_SetLineCodingA(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
dataRate, // __in uint32l_t dataRate,
charFormat, // __in uint8_t charFormat,
parityType, // __in uint8_t parityType,
dataBits, // __in uint8_t dataBits,
flowControl, // __in uint8_t flowControl,
gpioMode0 // __in uint8_t gpioMode0
// addressモード時 flowControl = 0x03
// それ以外は flowControl = 0x01
// gpioMode0は0x39固定
);
memo_ret("HDL9BIT_SetLineCodingA", ret);
ss1.printf("dataRate = %d", dataRate);
memo(ss1);
// -------------------------------------------------------------------
// Sets maximum allowable time for read and write operations.
// 送受信タイムアウト時間読み込み
uint32l_t writeTimeout;
uint32l_t readTimeout;
ret = HDL9BIT_GetTimeouts(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
&writeTimeout, // __in* uint32l_t writeTimeout,
&readTimeout // __in* uint32l_t readTimeout
);
writeTimeout = 500;
readTimeout = 2000;
// -------------------------------------------------------------------
// Sets maximum allowable time for read and write operations.
ret = HDL9BIT_SetTimeouts(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
writeTimeout, // __in uint32l_t writeTimeout,
readTimeout // __in uint32l_t readTimeout
);
memo_ret("HDL9BIT_HDL9BIT_GetTimeouts", ret);
// -------------------------------------------------------------------
// Returns the currently configured addresses used by the UART when
// Address Match Mode is enabled.
// AddressModeで使用する設定アドレス取得
uint8_t unicastAddress = 0; // __out uint8_t* unicastAddress,
uint8_t multicastAddress = 0; // __out uint8_t* multicastAddress
ret = HDL9BIT_GetUartAddress(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
&unicastAddress, // __out uint8_t* unicastAddress,
&multicastAddress // __out uint8_t* multicastAddress
);
memo_ret("HDL9BIT_GetUartAddress", ret);
// -------------------------------------------------------------------
// Sets the addresses the UART will respond to when Address Match Mode
// is enabled.
// AddressModeで使用する設定アドレス設定
unicastAddress = 0x55; // __out uint8_t* unicastAddress,
multicastAddress = 0x80; // __out uint8_t* multicastAddress
ret = HDL9BIT_SetUartAddress(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
unicastAddress, // __in uint8_t unicastAddress,
multicastAddress // __in uint8_t multicastAddress
);
memo_ret("HDL9BIT_SetUartAddress", ret);
memo_ret("HDL9BIT_SetUartRxFifoThreshold", ret);
ss1.printf("unicastAddress = %02X", unicastAddress);
memo(ss1);
ss1.printf("multicastAddress = %02X", multicastAddress);
memo(ss1);
// -------------------------------------------------------------------
// Returns the current setting for the number of bytes in the Rx FIFO
// before flow control is asserted to the remote UART.
// 受信FIFO動作しきい値読み込み
uint16_t rxFifoThreshold; // __out uint16_t* rxFifoThreshold
ret = HDL9BIT_GetUartRxFifoThreshold(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
&rxFifoThreshold // __out uint16_t* rxFifoThreshold
);
memo_ret("HDL9BIT_GetUartRxFifoThreshold", ret);
// -------------------------------------------------------------------
// Sets how many bytes will be stored in the local UART's Rx FIFO
// before flow control is asserted to the remote UART.
// 受信FIFO動作しきい値設定
rxFifoThreshold = 450; // __out uint16_t* rxFifoThreshold
ret = HDL9BIT_SetUartRxFifoThreshold(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
rxFifoThreshold // __in uint16_t rxFifoThreshold
);
memo_ret("HDL9BIT_SetUartRxFifoThreshold", ret);
ss1.printf("rxFifoThreshold = %d", rxFifoThreshold);
memo(ss1);
// -------------------------------------------------------------------
// __indicates whether a device handle is still open
// オープン状況問い合わせ
ret = HDL9BIT_IsOpen(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
&isOpenUart // __out boolean_t* opened
);
memo_ret("HDL9BIT_IsOpen", ret);
memo(" --Open Uart --");
CheckBox_isOpen->Checked = isOpenUart;
// -------------------------------------------------------------------
// Returns the current USB Serial Number String.
// デバイス固有番号（シリアル番号）取得
ret = HDL9BIT_GetOtpSerialNumberString(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
&strlen8b, // __out uint8_t* stringLength,
serialString // __out char* serialString
);
memo_ret("HDL9BIT_GetOtpSerialNumberString", ret);
ss1.printf("%s", serialString);
memo(ss1);
// -------------------------------------------------------------------
// Returns the current USB Product String.
// 製品名称取得
ret = HDL9BIT_GetOtpProductString(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
&strlen8b, // __out uint8_t* stringLength,
productString // __out char* productString
);
memo_ret("HDL9BIT_GetOtpProductString", ret);
ss1.printf("%s", productString);
memo(ss1);
// -------------------------------------------------------------------
// Returns the current USB Manufacturer String.
// 製造メーカ名取得
ret = HDL9BIT_GetOtpManufacturerString(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
&strlen8b, // __out uint8_t* strlen,
manufacturingString // __out char* manufacturingString
);
memo_ret("HDL9BIT_GetOtpManufacturerString", ret);
ss1.printf("%s", manufacturingString);
memo(ss1);
// -------------------------------------------------------------------
// Flushes buffers and FIFOs in transmit, receive, or both directions.
// 送受信バッファを空にする
boolean_t flushTransmit = true;
Boolean flushReceive = true;
ret = HDL9BIT_FlushBuffers(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
flushTransmit, // __in boolean_t flushTransmit,
flushReceive // __in boolean_t flushReceive
);
memo_ret("HDL9BIT_FlushBuffers", ret);
// -------------------------------------------------------------------
// __indicates whether a UART channel is currently enabled for transmit and receive
// 送受信有効・無効設定確認
boolean_t enabled = false;
ret = HDL9BIT_IsEnabled(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
&enabled // __out boolean_t* enabled
);
memo_ret("HDL9BIT_IsEnabled", ret);
// -------------------------------------------------------------------
// Enables a UART channel for transmit and receive
// 送受信有効・無効設定
enabled = true;
ret = HDL9BIT_EnableUart(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
enabled // __in boolean_t enable
);
memo_ret("HDL9BIT_EnableUart", ret);
break;
// loop end
}
}
// ---------------------------------------------------------------------------
void __fastcall TForm2::Button_BRK_onClick(TObject *Sender) // BREAK ON
{
if (isOpenUart)
{
//-------------------------------------------------------------------
//Requests a UART to transmit a break signal.
//ブレーク信号送信
int ret;
ret = HDL9BIT_SendBreak(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
0 //__in uint8_t breakDuration
);
memo_ret("HDL9BIT_SendBreak", ret);
}
else
{
memo("Openしてません");
}
}
//---------------------------------------------------------------------------
void __fastcall TForm2::Button_BRK_offClick(TObject *Sender) // BREAK OFF
{
if (isOpenUart)
{
//-------------------------------------------------------------------
//Requests a UART to stop transmitting break.
//ブレーク信号停止
int ret;
ret = HDL9BIT_CancelBreak(
HDL9BIT_han // __in H9bHandle_t uartDeviceObject,
);
memo_ret("HHDL9BIT_CancelBreak", ret);
}
else
{
memo("Openしてません");
}
}
//---------------------------------------------------------------------------
void __fastcall TForm2::Button_closeClick(TObject *Sender) //クローズ
{
//-------------------------------------------------------------------
//Close a device handle
//UARTクローズ
int ret;
ret = HDL9BIT_CloseUart(
HDL9BIT_han // __in H9bHandle_t uartDeviceObject,
);
memo_ret("HDL9BIT_CloseUart", ret);
isOpenUart = false;
CheckBox_isOpen->Checked = isOpenUart;
}
//---------------------------------------------------------------------------
void __fastcall TForm2::CheckBox_isOpenClick(TObject *Sender)
{
CheckBox_isOpen->Checked = isOpenUart;
}
//---------------------------------------------------------------------------
void __fastcall TForm2::Button_sendClick(TObject *Sender)
{
while (true)
{
if (!isOpenUart)
{
break;
}
int ret;
int i;
int len;
int address16;
AnsiString ss1;
uint8_t address;
uint8_t byteBuffer[1024];
uint32l_t numberOfBytesToWrite;
uint32l_t numberOfBytesWritten = 0;
numberOfBytesToWrite = 10;
// 相手アドレス
ss1 = "0x"+ Edit_adrs->Text;
address16 = ss1.ToInt();
address = (uint8_t)(address16 & 0xff);
//送信テキスト
AnsiString s_text = Edit_stext->Text;
uint8_t byteBuffertemp[512];
len = s_text.Length();
memcpy( byteBuffertemp, s_text.c_str(), len);
i = 0;
byteBuffer[i++] = address;
byteBuffer[i++] = 0x01;
numberOfBytesToWrite = len * 2 + 2;
for ( int j= 0; i < len * 2; i+=2, j++)
{
byteBuffer[i] = byteBuffertemp[j];
byteBuffer[i + 1] = 0;
}
//-------------------------------------------------------------------
//Writes data to a UART handle (USB OUT transfers).
//送信データ書き込み(送信)
ret = HDL9BIT_WriteUart(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
numberOfBytesToWrite, //__in uint32l_t numberOfBytesToWrite,
byteBuffer, // __in uint8_t* byteBuffer,
&numberOfBytesWritten //_out uint32l_t* numberOfBytesWritten
);
memo_ret("HDL9BIT_WriteUart", ret);
if (ret != HDL9BIT_SUCCESS) break;
//------------------------------------------------------------------
// 受信
//-------------------------------------------------------------------
//Reads data from a UART handle (USB IN transfers).
//受信データ読み込み
uint32l_t numberOfBytesToRead;
uint32l_t numberOfBytesRead;
numberOfBytesToRead = 256;
numberOfBytesRead = 0;
memo(".....wait recieve..");
ret = HDL9BIT_ReadUart(
HDL9BIT_han, // __in H9bHandle_t uartDeviceObject,
numberOfBytesToRead, //__in uint32l_t numberOfBytesToRead,
byteBuffer, //__out uint8_t* byteBuffer,
&numberOfBytesRead //__out uint32l_t* numberOfBytesRead
);
if ((ret == HDL9BIT_SUCCESS) ||
(ret == HDL9BIT_ERR_UART_READ_FAIL_TIME_OUT))
{
if (numberOfBytesRead != 0) {
AnsiString rx_text,ss1;
rx_text = "";
for( i = 0; i < numberOfBytesRead; i++ ){
ss1.printf("%02X ", byteBuffer[i]);
rx_text = rx_text + ss1;
}
memo("RXD=" + rx_text);
}
}
else
{
}
memo(".....return");
// loop end
break;
}
}
//---------------------------------------------------------------------------
メールでのご質問はこちらへどうぞ
USB専用サイトのトップへ
